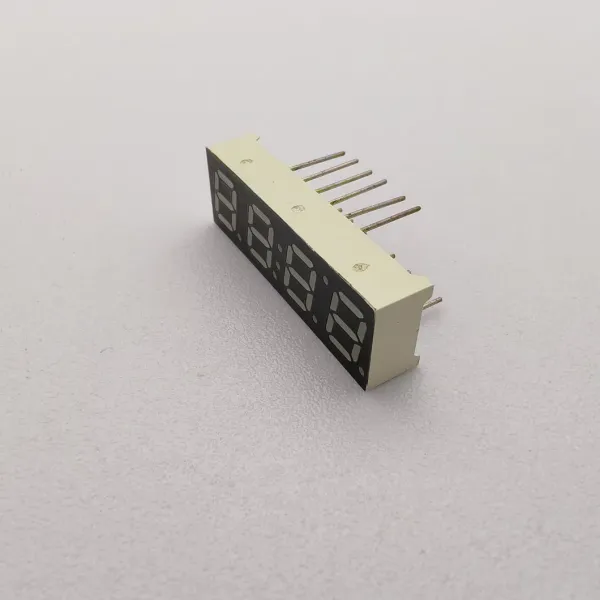

Pure Green 4 Digit 7 Segment LED Display for Timer control
| Product Name | Pure Green 4-Digit 7-Segment LED Display for Timer Control | Custom designs for various applications |
|---|
| Your Part Number | - | Printing of your custom part number is supported |
|---|
| Digit Number | 4 digits | Available in 2, 3, 4, 5, or 6 digits |
|---|
| Standard Color | Pure Green | White, blue, red, yellow-green, orange, etc. |
|---|
| Polarity | Common Anode | Common Cathode is available |
|---|
| Lifespan | 80,000 hours | - |
|---|
| Free Samples | Supported | Tooling samples require 15-20 working days |
|---|
| Sample Lead Time | 5-7 working days | - |
|---|
| Production Lead Time | 15-20 working days | May vary according to order quantity |
|---|
| OEM/ODM Services | Fully Supported | Customization based on your drawings or ideas |
|---|
| Logo Printing | Supported | Customization based on your provided artwork |
|---|
| Minimum Order Quantity (MOQ) | 1,000 PCS | First order MOQ can be 100-500 PCS |
|---|
Key Features & Specifications:
- Optical Performance: High luminous intensity output at low forward voltage, with even
light distribution across all segments.
- Power Efficiency: Extremely low power consumption and operating current.
- Design & Compatibility: Industrial standard footprint for easy integration.
- Reliability: Stable performance with excellent readability in bright ambient
light and a long operational lifetime.
- Compliance: Meets RoHS and REACH environmental standards.
Code: Yellow Green - J/JU. Infuse your displays with dynamic and
vivid colors, meticulously crafted to meet your unique design
preferences and elevate visual aesthetics.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 |
| 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 |
|
| V |
| Luminous Intensty | Iv | If=10mA | 30 |
| 40 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA |
| 20 |
| nm |
| Wavelength | Dλ | If=10mA | 569 |
| 574 | nm |
Code: Amber/Yellow - Y. Create inviting and attention-grabbing
displays with this warm, cozy hue that exudes an inviting glow and
magnetic appeal.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 |
| 2.5 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 |
|
| V |
| Luminous Intensty | Iv | If=10mA | 60 |
| 80 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA |
| 20 |
| nm |
| Wavelength | Dλ | If=10mA | 585 |
| 595 | nm |
Code: Orange - F. Infuse energy and excitement into your visual
displays with our striking, vibrant orange hue that guarantees your
display stands out with flair.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 |
| 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 |
|
| V |
| Luminous Intensty | Iv | If=10mA | 60 |
| 80 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA |
| 20 |
| nm |
| Wavelength | Dλ | If=10mA | 600 |
| 605 | nm |
Code: Super Bright Red - R. Dive into the captivating radiance of
this vibrant color, perfect for crafting displays that demand
attention and leave a lasting impression.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 |
| 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 |
|
| V |
| Luminous Intensty | Iv | If=10mA | 50 |
| 60 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA |
| 20 |
| nm |
| Wavelength | Dλ | If=10mA | 630 |
| 635 | nm |
Code: Ultra Bright Red - UR. Elevate your display's impact with
this intensely luminous red, delivering unmatched visibility and
striking presence.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 |
| 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 |
|
| V |
| Luminous Intensty | Iv | If=10mA | 80 |
| 100 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA |
| 20 |
| nm |
| Wavelength | Dλ | If=10mA | 625 |
| 635 | nm |
Color: Pure Green. Choose this refreshing, crisp green for designs
that align seamlessly with eco-friendly themes, creating a
rejuvenating and natural appeal.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.6 |
| 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 |
|
| V |
| Luminous Intensty | Iv | If=10mA | 120 |
| 180 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA |
| 20 |
| nm |
| Wavelength | Dλ | If=10mA | 515 |
| 525 | nm |
Code: Ultra Bright Blue - BH. Revitalize your displays with this
cool, vibrant blue, offering a refreshing and modern aesthetic that
elevates any setting.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.8 |
| 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 |
|
| V |
| Luminous Intensty | Iv | If=10mA | 120 |
| 140 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA |
| 20 |
| nm |
| Wavelength | Dλ | If=10mA | 460 |
| 465 | nm |
Code: Ultra Bright White - WH. Achieve unmatched clarity and
sophistication with this pristine white, elevating your display to
new levels of brilliance and elegance.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.8 |
| 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 |
|
| V |
| Luminous Intensty | Iv | If=10mA | 120 |
| 140 | mcd |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 |
| 0.30,0.33 | nm |
Absolute Maximum Ratings (Ta=25ºC): Explore the robust performance
attributes that highlight the superior capabilities of our advanced
LED display technology.
| Parameter | Symbol | Ratings | Unit |
|---|
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) is a
beacon of excellence in OEM and ODM services since 2006. Certified
under ISO 9001:2015, our legacy of over 15 years showcases our
relentless pursuit of innovation and quality.
LIGHTBO empowers its clients with premier, budget-friendly custom
solutions that not only reduce expenses but also enhance
competitive advantages in the global marketplace.
Our 7 Segment LED Display, Customized LED Display, Numeric LED
Display, and Dot Matrix LED Display are at the forefront of
innovation and design. They integrate seamlessly into diverse
applications, enhancing both function and style. Whether you're
upgrading home appliances, providing exact temperature and humidity
readings, or developing robust solutions for refrigerator
controllers, thermostats, and HVAC systems, our products exemplify
superior performance and quality. Discover the unique fusion of
technology and design with Shenzhen Guangzhibao Technology Co.,
Ltd.
FAQ(Frequently Asked Questions)
Q1 Are you trading company or manufacturer A: We are original manufacturer with more than 20 years experience
in optoelectronic LED displays . Q2 What is your main products A: Our main products include 7 Segment LED display, SMD LED
Display,Dot matrix LED Display, Arrow LED display, Custom Design
LED Display ,LED light bar,Through hole led, SMD LEDs,LED
Backlights, and so on . Q3 What is your MOQ A: Our MOQ is 1000 pcs , We can also accept sample orders and
small orders with quantity less than our MOQ . Q4 Before placing order, Can I get some samples for test A: Yes. We can provide 5-10 free samples for your testing, but the
freight cost will be borne by the customer. Q5 How long is your delivery time A: Delivery time:About 10-20 days; According to order quantity and
raw materials. If you have urgent order,and we have raw materials
in stock, we can adjust our production plan to make it ready within
7-10 days . Q6 What is your terms of payment A: We accept bank transfer,T/T,Western Union and Paypal with small
amount. Detailes of payment methods can be negotiatble. Q7 Can you quote me FOB prices A: Yes. We can quote you prices based on incoterms EXW, FOB,
CIF,DDP. Q8 How can I get your catalogue and price list A: Yes . Please let us know your email address or contact us from
website directly for our catalogue and price list . Q9 Can I negotiate the prices A: Yes, we may consider discounts for bulk orders. Q10 How much will the shipping charges be A: It depends on the size of your shipment and the method of
shipping. We will offer the charge to you as you requested. Q11 Can you do custom design products A: Yes , OEM&ODM service are available .We can customize the
sizes,led color and functional icons according to your
requirements. Q12 If I send my design , can you make it for myself only ,and will
not show it to any one else A: Yes , we will not show it or sell to others without your
authorization. Q13 IWhat will be the samples lead time for customized products A: Samples lead time will be about 20-25 working days after
receiving mold cost and mold drawing approval from customers . Q14 What is the shipping methods A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA
etc, also you can choose the other way that best for you. Q15 How do you ensure the quality of your products A: we are ISO 9001 QMS ceritified manufacturers with more than 20
years experience ,We conduct twice 100% percent test for all of our
products before shipment .
